TM-V7A/E

Dual-band FM Transceiver

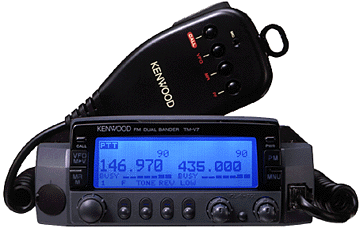

photo: TM-V7A/E FM
Mobile Transceiver

Kenwood's new TM-V7A/E FM dual-band (2 m/70 cm) transceiver is like no other: the easy-to-operate control panel with its cool-blue reversible LCD -- offering both positive and negative display modes -- marks a bold departure in ergonomic design. And there's a lot more inside -- like the "four-in-one" programmable memory, DTSS and pager functions, 280 memory channels, plus the ability to receive two frequencies on the same band. Outside and in, the TM-V7A/E is setting the pace for tomorrow's mobile communications.

Features at a glance:

	Dual-mode reversible LCD
	"Four-in-one" programmable memory
	Dual receive on same band (f2)
	Up to 280 multi-function memory channels
	Memory Name function
	Multi-scan functions
	Visual scan function
	DTSS
	Built-in CTCSS encoder/decoder
	Auto simplex checker
	Advanced Intercept Point
	6-pin mini DIN connector for 1200/9600 bps packet
	Quick-release detachable front panel kit (option)

TM-V7A/E: In Detail

Dual-mode reversible LCD

A world first: the cool-blue LCD panel -- capable of displaying dot-matrix characters -- can be switched between positive and negative display modes to ensure optimum visibility in all conditions. The control panel is large (51.5 x 105 mm) and features four multifunction keys -- with key function display -- for improved operating ease.

"Four-in-one" programmable memory

The TM-V7A/E has a multiple "personality" to suit different conditions. Its programmable memory can store four entire operating profiles, ready for instant recall at the push of a button. Each profile includes such settings as positive/negative display mode, dimmer level, frequency range, and memory mode.

Dual receive on same band (f2)

In addition to simultaneous receive on VHF and UHF bands, the TM-V7A/E can receive two frequencies on the same band. Monoband use is also possible.

Up to 280 multi-function memory channels

There's capacity as well as versatility: up to 280 memory channels for storing important data -- transmit and receive frequencies (independently), frequency step, tone frequency, etc. (180 channels when using Memory Name function)

Memory Name function

For greater convenience, you can choose to identify each channel with up to 7 alphanumeric characters. In this mode, the number of memory channels available is 180.

Visual scan with pause

By automatically checking above and below the frequency currently in use, and graphing the results on the LCD (147 channels max.), this new feature is convenient for searching out open channels.

Single-bander simplicity

Rapid response is assured by independent SQL and VOL controls for each band.

Multi-scan functions

Full band and program band scans, memory scan with memory channel lock-out, MHz scan and call scan are all available. For each band there are TO (time-operated) and CO (carrier-operated) scan stop modes.

DTSS selective calling with page function

Built-in DTSS (Dual-Tone Squelch System) allows DTMF access: the squelch is opened only when a specific 3-digit code has been received. The page function alerts you to incoming calls and opens the squelch if the receiver has been programmed to accept a DTMF tone group. And even during normal reception (squelch open), the TM-V7A/E can be on the alert for a predetermined code.

Built-in CTCSS encoder/decoder

The CTCSS (Continuous Tone Coded Squelch System) encoder/decoder enables operation of the 38 EIA-standard CTCSS sub tone frequencies.

Auto simplex checker

ASC will automatically check whether it is possible to switch from a repeater to simplex communications.

Advanced Intercept Point

You can choose either high sensitivity for simplex/weak-signal work, or a high intercept point -- using Kenwood's own AIP circuitry -- to minimize intermod or adjacent channel interference.

6-pin mini DIN connector for 1200/9600 bps packet

The front panel features a connector for hooking up to a TNC, enabling either standard 1200 bps or 9600 bps high-speed packet communications.

Quick-release detachable front panel kit (option)

To enhance security, simply remove the compact front panel whenever the car is left unattended. If the optional quick-release kit is used, the panel can be mounted virtually anywhere since the microphone cable connects directly to the main unit.

Guide function

There's no need to carry the manual with you -- the friendly guide function displays simply operating instructions at the touch of a button.

photo: Back-lit Keypad

Optional MC-53DM multi-function backlit mic with DTMF
(supplied in some markets)

Other Features:

	Automatic band change
	Selectable frequency step (5, 6.25, 10, 12.5, 15, 20, 25 or 50 kHz)
	Transceiver control function
	Voice Synthesizer (requires VS-3 option)
	Incremental MHz key
	S-meter squelch
	Time-out timer
	Audible frequency identification
	Auto repeater offset (2 m band)
	Separate speaker terminals for each band (switch able)
	Power-on message
	Contrast adjustment
	Dimmer control
	Auto power-off circuit
	Heavy-duty construction

Dimensions (W x H x D)

140 x 40 x 189 mm (5.52 x 1.58 x 7.45 in.)

Please note that not all features and options may be available for the model sold in your region.
Operation of DTSS, Pager, DTMF, and CTCSS is subject to local regulations.
