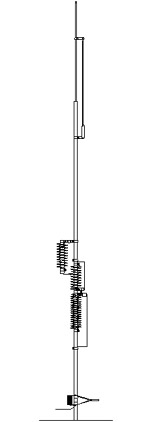

270-06 Model HF6V Six Band Vertical Antenna
|
 |
| Work six bands; 80, 40, 30, 20, 15 and 10 meters with an extremely efficient vertical radiator only 26 feet tall! The HF6V is an easy to erect and tune antenna that will last you for many years. No lossy traps are used in this internationally acclaimed antenna design. No radials required with the optional CPK Counterpoise kit. Accessory kits for 160, 17, 12 and 6 meter coverage available |
 |
|
Height (Adjustable):
|
26 ft (7.9 m)
|
|
Shipping Weight:
|
12 lbs (5.4 kg)
|
|
Feed Point Impedance:
|
Nominal 50 ohms through included matching line.
Includes RF connectors for direct connection to any length feed line
terminated in PL-259 |
|
VSWR at Resonance:
|
1.5:1 or less on all bands |
|
Power Rating:
|
2 kW PEP 75/80, 40, 20, 15, 10 meters; 500 W PEP 30
|
|
Wind Loading:
|
2 ft2 (.19 m2)
|
|
Unguyed Wind Survival:
|
80 mph (129 kph) |
|
Bandwidth for VSWR
2:1 or Less:
|
10 m - entire band
15 m - entire band
20 m - entire band
30 m - entire band
40 m - 250-300 kHz
80 m - 40-100 kHz |
|
Active Element Lengths:
Band Length Acts as
|
|
Band
|
Length
|
Acts as
|
10m
15m
20m
30m
40m
80m
|
26 ft (7.9m)
12 ft (3.7m)
26 ft (7.9m)
26 ft (7.9m)
26 ft (7.9m)
26 ft (7.9m)
|
3/4
1/4
3/8
1/4
1/4
1/4
|
|
|
Comes complete with 2 ft. (61 cm) mounting tube, 1 1/8 in. (28.6 mm) OD, for direct placement in earth or into standard steel TV mast. Requires radial system such as GRK Ground Radial Kit, CPK Capacitive Counterpoise Kit or RMK-II Roof Mounting Kit. |
|
|
|
|
|
