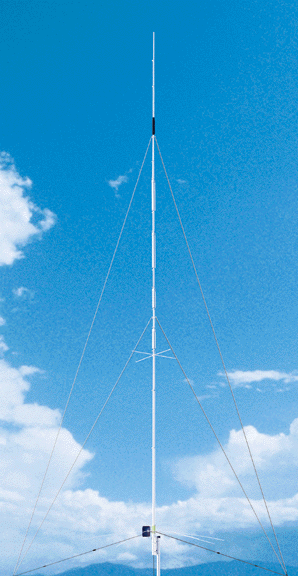

80 米波的組件 (R80)可以很容易的加裝在 R7000 上. 這套組件包括 40 米波的陷波器, 合金管, 80 米負載線圈, UV 材質的堅固反射輔助拉線, 夾具, 另 30 英尺長的拉線可以固定在適當的地方, 所有的線材均是耐候性極佳的材質.
| Frequency, meters | 10,12,15,17,20,30,40,80 |
| Gain, | dBi 3 |
| Wavelength each band | Half-wave |
| VSWR | 1.2:1 typical |
| 2:1 bandwidth, KHz | 10m (1700),12m (100) |
| 15m (450),17m (100) | |
| 20m (250), 30m (100) | |
| 40m (100) | |
| 80m (70) | |
| Power Rating, Watts | 1500 |
| Radiation angle,deg. | 16 |
| Horizontal rad, deg | 360 |
| Height, ft(m) | 34.5 (10.5) |
| Mast size range, in(cm) | 1-3/4 to 2-1/8 (4.4-5.4) |
| Wind load, sq ft (sq m) | 2 .5(0.23) |
| Weight, lb, (kg) | 24 (10.8) |
